UCF204-12, 4-Bolt Flange Mounted Unit Bearing, 0.75" Bore (ID), 3/4 " Bore (ID), Insert Bearing: UC204-12

UCF204-12, 4-Bolt Flange Mounted Unit Bearing, 0.75" Bore (ID), 3/4 " Bore (ID), Insert Bearing: UC204-12

UCF204-12

$9.27 USD
$9.27 USD
Sale Sold out
Shipping calculated at checkout.

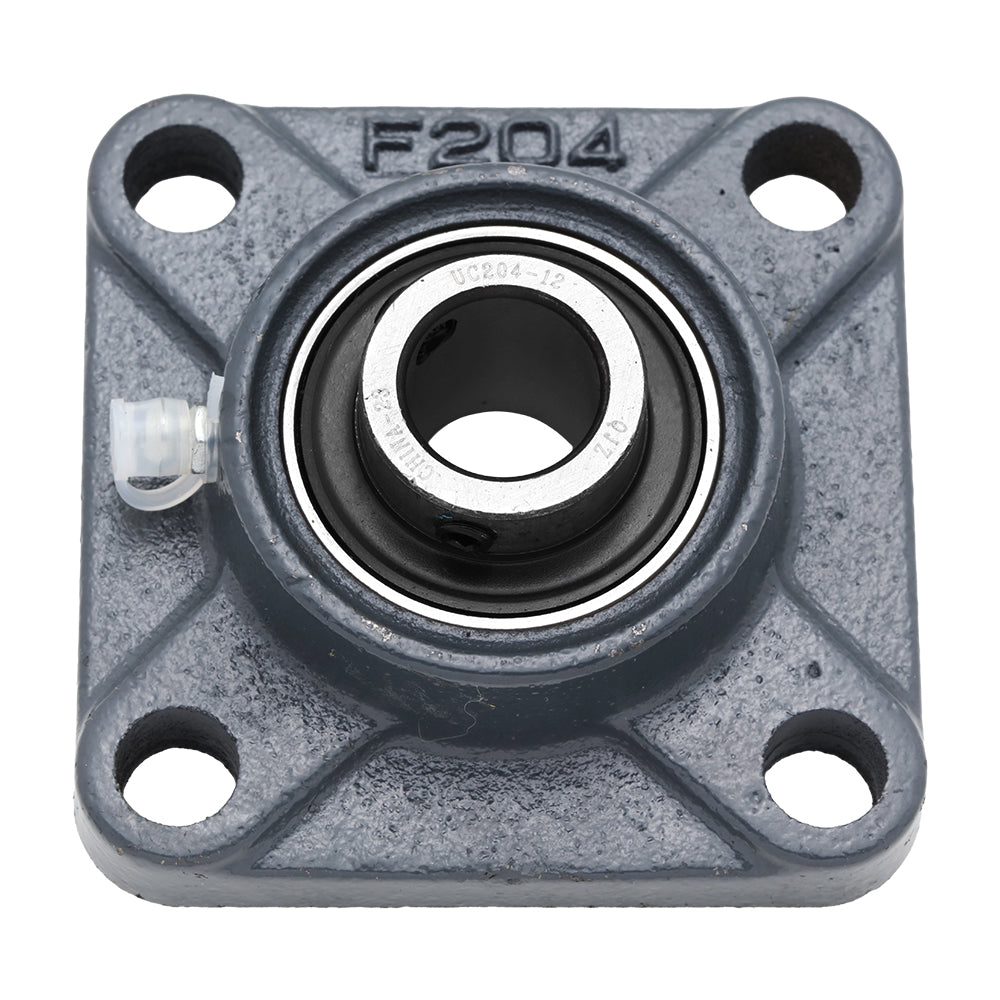

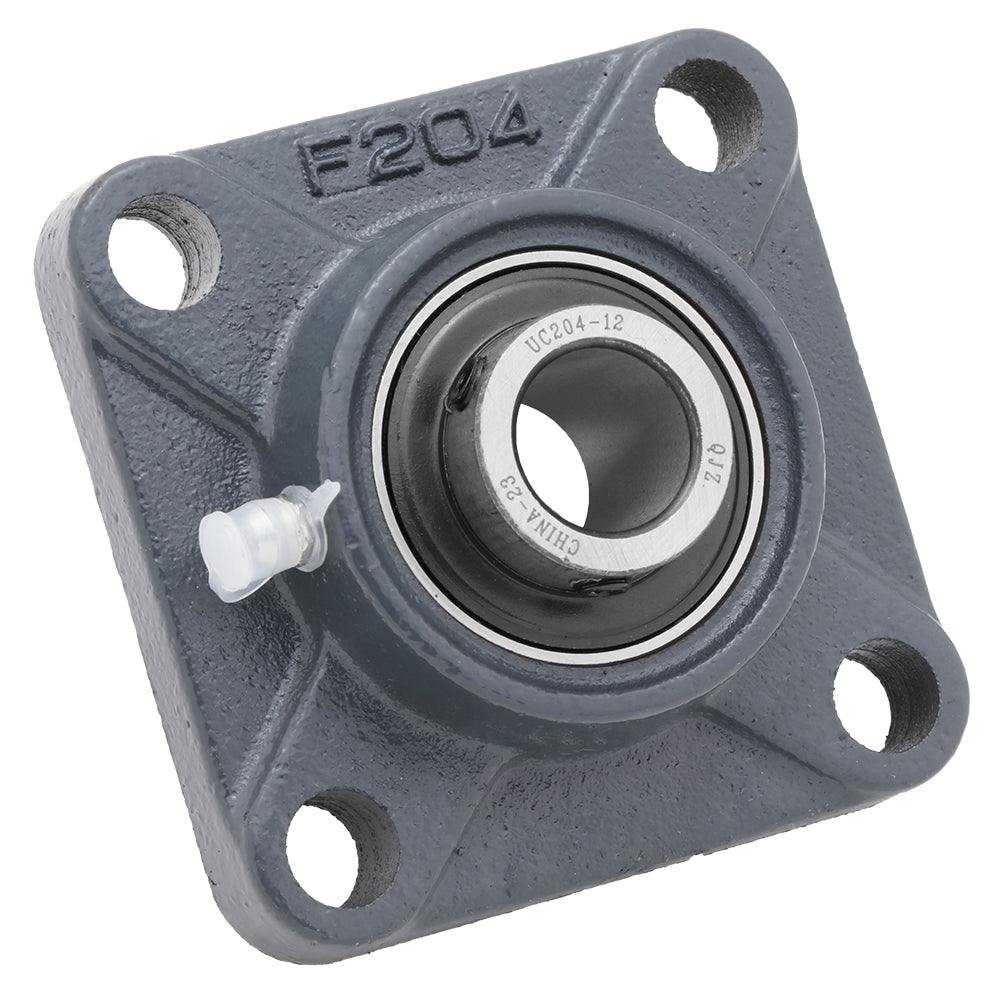

4-Bolt Flange Mounted Unit Ball Bearing

The UC series 4-bolt square flange mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Designed with a square flange housing and secure locking insert bearing, these units ensure stable mounting and long service life.

Part Number UCF204-12
Shaft Bore (ID) 0.75 in | 19.05 mm
Height 1.311 in | 33.3 mm
Length 3.386 in | 86 mm
Bolt to Bolt Spacing 3.386 in | 86 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
