UCFB206-20 - 3-Bolt Flange Bracket Mounted Ball Bearing, 1.25" Bore (ID), Insert Bearing: UC206-20, Housing: FB206

UCFB206-20 - 3-Bolt Flange Bracket Mounted Ball Bearing, 1.25" Bore (ID), Insert Bearing: UC206-20, Housing: FB206

UCFB206-20

$31.60 USD
$31.60 USD
Sale Sold out
Shipping calculated at checkout.

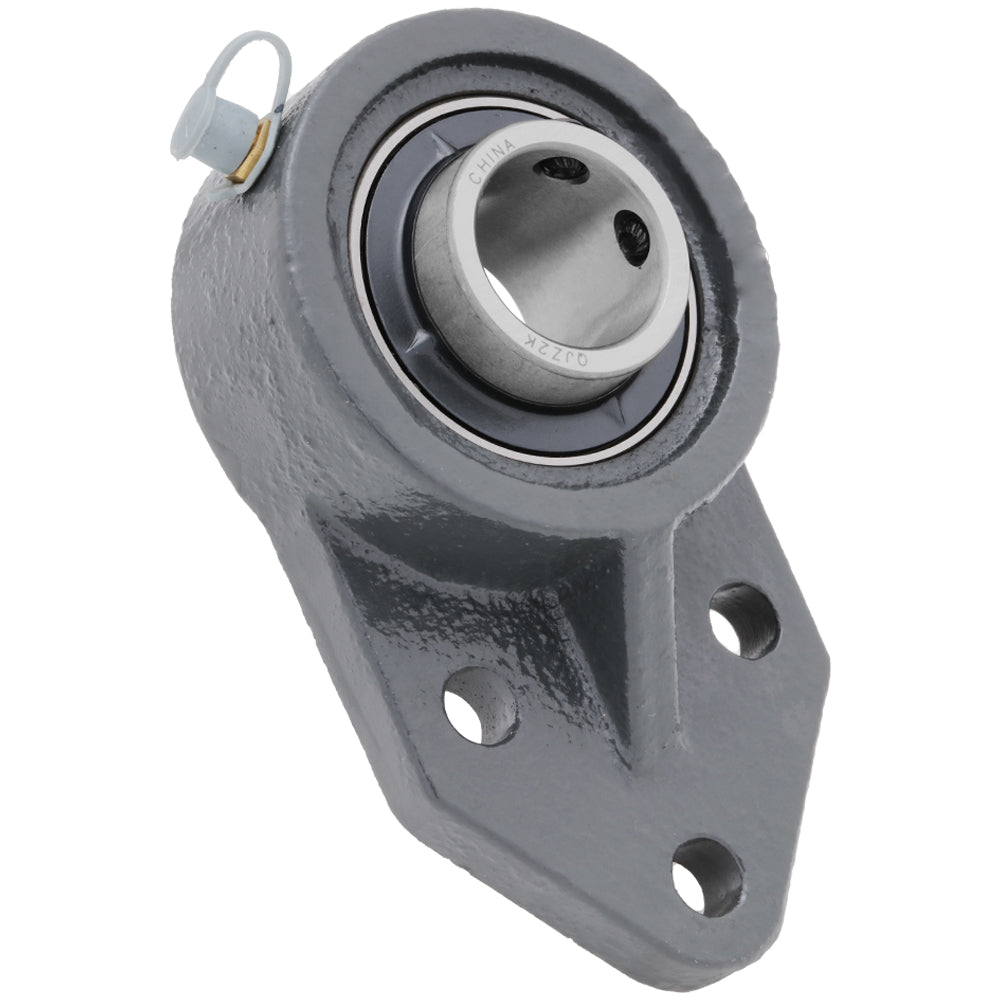

3-Bolt Flange Bracket Mounted Unit Bearing

The UC series 3-bolt mounted ball bearings provide reliable shaft support for industrial machinery, agricultural equipment, conveyors, and material handling systems. Each unit comes with an insert bearing (UC206-20) and housing(FB206) with set-screw locking for secure shaft attachment, easy installation, and long service life.

Model UCFB206-20
Shaft Bore (ID) 1.25 in | 31.75 mm
Length 5.197 in | 132 mm
Height 1.583 in | 40.208 mm
Width 3.15 in | 80 mm


Applications

  • Conveyor systems
  • Agricultural machinery
  • Material handling
  • General industrial machinery
